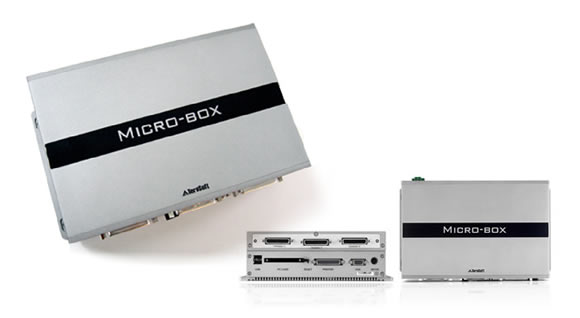

To cater for different application and making it possible to connect and communication with the world at large. Micro-Box do support a range of different input and output modules to match your application deployment needs.
I/O Board
Support I/O Module
Micro-Box 3718
AD
16 single-ended or 8 differential analog input channels (12-Bit ADC , -10 ~ 10 V )
DI/O
16 digital inputs and digital outputs line（8 bits）
Micro-Box 3712
DA
2 digital Outputs channel (12-Bit DAC, -10~10V)
Micro-Box 3724
DI/O
48 digital inputs and digital outputs line
Micro-Box 3240
Encoder
4 channels & 32bits encoder channels, max. input frequency 1MHz
Micro-Box 3680
CAN
2 ports, high speed transmission up to 1Mbps
Micro-Box 3780
Counter
2 independent 16-bit counters max input frequency 20 MHz
DI/O
24 digital inputs and digital outputs line
