Features

• Adopt high-performance DSP and FPGA technology.
• Coordinated motion up to 3 axes, Continuous interpolation function.
• Control period is 200us.
• Modes of motion: linear interpolation, circular interpolation, and manual pulse generator function.
• Pulse output frequency for interpolation steadily up to 256KHZ.
• Radial error of circular interpolation less than ±0.5pulse.
• Programmable management for alarm signal and limit switch signal
• On-board memory buffer (up to 8k).
• Programmable coordination offset.
• PID (Proportion-Integral-Differential) digital filter with velocity and acceleration feedforward, and with integral limit and bias compensation and low-pass filter (Only for SV card).
• Look-ahead function.
• Programmable start velocity and maximum velocity.
• Programmable velocity override during motion.
• Network communication port (Ethernet, Profibus-DP, RS232, RS422/485) (Optional function).

Technical Specification:

Axis Channels:

• 3 channels of 16-bit analog voltage output signal (Only for SV card) or pulse signal with a frequency up to 256KHz, 4 channels of quadrature incremental encoder input (3 channels for axis feedback signal input, 1 channel for the auxiliary encoder input)
• Encoder signal counting rate up to 4MHz
• Flexible combination of analog voltage output and pulse output mode (Only for SV card)

Analog Input (Optional):

• 8 channels of independent 12-bit +10V analog input

Uncommitted Digital Input/Output:

• 16 channels of uncommitted opto-isolated digital input
• 16 channels of uncommitted opto-isolated digital output

Dedicated Digital Input/Output:

• Dedicated opto-isolated input per axis, 2 channels for limit switch signal, 1 channel for home signal, and 1 channel for drive alarm signal input
• Dedicated opto-isolated output per axis, 1 channel for drive activation signal and 1 channel for drive alarm signal reset

Position Capture:

• 1 channel of probe input can capture the positions of three encoder and auxiliary encoder simultaneously
• 1 channel of home hardware capture signal for each axis and 1 channel Index hardware capture signal for each axis

Bus Type:

• Standard PCI/ISA/PC104 bus
• GE motion controller + PC
• GE motion controller + embedded system.
• Stand-alone through standard network interface (Optional)

System Software:

• Demo software of engraving machine
• Demo software in Windows environment
• Windows 98/2000/NT equipment drivers, extended DLL
• C/C++ function library and Example source code in DOS.

Power Consumption:

• +5V, Icc=2A, power supplied from PC
• ±12V, Icc=60mA, power supplied from PC
• +24V or +12V, Icc=2A, external power provided by user

Environment:

• Operating temperature: 0 - 60ºC
• Relative humidity: 5% - 90%, non-condensing

Mechanical Dimension:

• 122mm x 185mm

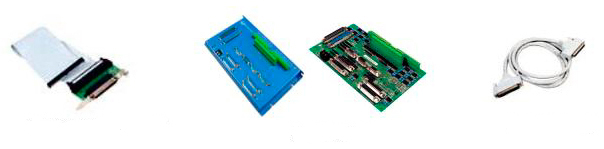

Basic Accessories:

• GE-300-ACC1 interconnect board
• GE-300-ACC2 terminal board
• GE-300-ACC3 62-pin shielded cable (x2)
• GE-300-ACC4 60-pin flat cable

Ordering Guide

Model	No of Axes	Motor Type	Control Mode	PC Bus Type
GE-300-SV	3	Servo / Step	Analog and pulse output & close loop control	ISA / PC104 or PCI
GE-300-SG	3	Servo / Step	Encoder input and pulse output & open loop control	ISA / PC104 or PCI
